ISCA-5503832

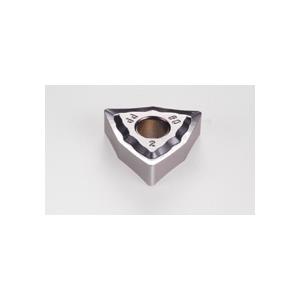

Iscar 5503832 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 432-PP IC3028 WNMG Insert 432 Insert Trigon Shape 08 Seat Positive Rake Carbide Manufacturer's Grade: IC3028
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 432 Insert Trigon 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 08 Seat Positive Rake PP Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC3028 ANSI Code: WNMG 432-PP IC3028 ISO Code: WNMG 080408-PP IC3028 80 deg Included Angle 0 deg Relief Angle Carbide PVD Coated
Additional details
Product details
- Double-sided trigon inserts with a positive rake angle and sharp positive radial edge Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD Coated
- Insert Size: 432
- Insert Style: WNMG
- ISO Code: WNMG 080408-PP IC3028
- Manufacturer's Grade: IC3028
- Material: Carbide
- Series: ISOTURN
- Shape: Trigon
