ISCA-5503783

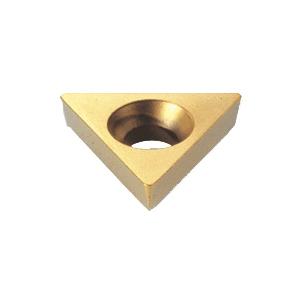

Iscar 5503783 ISOTURN 1-Sided Turning Insert ANSI Code: TPGB 2-1 IC570 TPGB Insert Material Grade: M P 2-1 Insert Triangular Shape 11 Seat Positive Rake For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC570
Product information
Description

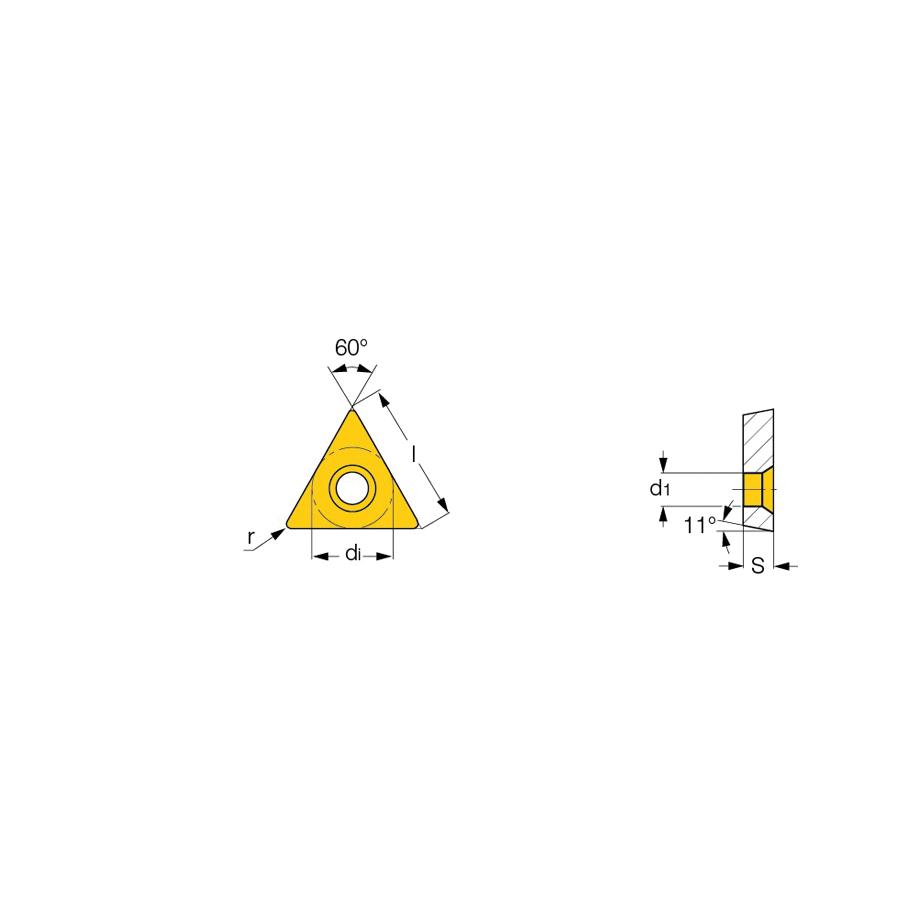

Iscar Turning Insert 1-Sided Series: ISOTURN TPGB Insert 2-1 Insert Triangular 3 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 2.38 mm Thickness 11 Seat Positive Rake 0.4 mm Corner Radius 3 mm Hole Dia Manufacturer's Grade: IC570 ANSI Code: TPGB 2-1 IC570 ISO Code: TPGB 110204 IC570 60 deg Included Angle 11 deg Relief Angle Carbide PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Suitable for short chipping materials such as cast iron IC570 grade used for semi-finishing and finishing at medium cutting speed of alloy and stainless steel Countersink on one side with hole
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 2-1
- Insert Style: TPGB
- ISO Code: TPGB 110204 IC570
- Manufacturer's Grade: IC570
- Material: Carbide
- Material Grade: M P
- Series: ISOTURN
- Shape: Triangular
