ISCA-5503778

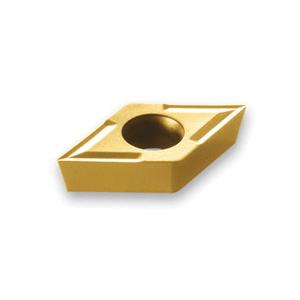

Iscar 5503778 ISOTURN Turning Insert ANSI Code: DCMT 3-0 IC520N DCMT Insert Material Grade: M P 3-0 Insert Rhombic Shape 11 Seat Positive Rake For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC520N
Product information
Description
Iscar Turning Insert Series: ISOTURN DCMT Insert 3-0 Insert Rhombic 2 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 11 Seat Positive Rake 0.2 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC520N ANSI Code: DCMT 3-0 IC520N ISO Code: DCMT 11T302 IC520N 55 deg Included Angle 7 deg Relief Angle Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Positive clearance for finishing applications Wear resistant prevents built-up edge Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 3-0
- Insert Style: DCMT
- ISO Code: DCMT 11T302 IC520N
- Manufacturer's Grade: IC520N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
