ISCA-5503775

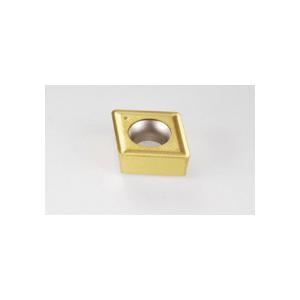

Iscar 5503775 ISOTURN 1-Sided Turning Insert ANSI Code: CCMT 3-2 IC520N CCMT Insert Material Grade: M P 3-2 Insert Rhombic Shape 09 Seat Positive Rake For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC520N
Product information
Description
Iscar Turning Insert 1-Sided Series: ISOTURN CCMT Insert 3-2 Insert Rhombic 3 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 09 Seat Positive Rake 0.8 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC520N ANSI Code: CCMT 3-2 IC520N ISO Code: CCMT 09T308 IC520N 80 deg Included Angle 7 deg Relief Angle Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Positive flank Chip breaking in moderate feed range Positive rake low cutting forces IC520N grade a cermet grade TiCN and TiN PVD coated Used for high speed semi-finishing and finishing applications with excellent surface finish Wear resistant prevents built-up edge
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 3-2
- Insert Style: CCMT
- ISO Code: CCMT 09T308 IC520N
- Manufacturer's Grade: IC520N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
