ISCA-5503730

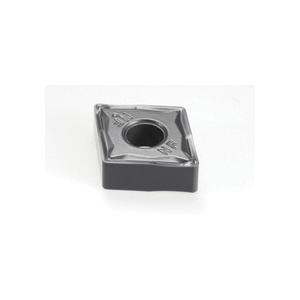

Iscar 5503730 ISOTURN 2-Sided Turning Insert ANSI Code: CNMG 432-NF IC20N CNMG Insert Material Grade: M P 432 Insert Rhombic Shape 12 Seat Positive Rake For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC20N
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN CNMG Insert 432 Insert Rhombic 3.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat Positive Rake NF Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC20N ANSI Code: CNMG 432-NF IC20N ISO Code: CNMG 120408-NF IC20N 80 deg Included Angle 0 deg Relief Angle Carbide Uncoated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Low cutting forces due to very sharp edge and positive rake IC20N grade a cermet grade used for grooving and turning applications Recommended for semi-finishing and finishing operations when excellent surface finish is required Wear resistant prevents built-up edge
Attributes
- Corner Radius: 0.8 mm
- Finish: Uncoated
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408-NF IC20N
- Manufacturer's Grade: IC20N
- Material: Carbide
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
