ISCA-5503674

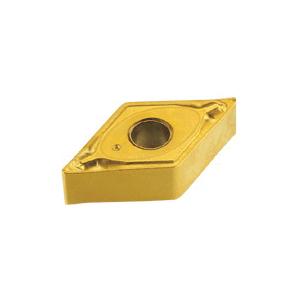

Iscar 5503674 ISOTURN 2-Sided Turning Insert ANSI Code: DNMG 332-NF IC530N DNMG Insert Material Grade: M P 332 Insert Rhombic Shape 11 Seat Positive Rake For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC530N
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN DNMG Insert 332 Insert Rhombic 3.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 4.76 mm Thickness 11 Seat Positive Rake NF Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC530N ANSI Code: DNMG 332-NF IC530N ISO Code: DNMG 110408-NF IC530N 55 deg Included Angle 0 deg Relief Angle Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Low cutting forces due to very sharp edge and positive rake Wear resistant prevents built-up edge Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 332
- Insert Style: DNMG
- ISO Code: DNMG 110408-NF IC530N
- Manufacturer's Grade: IC530N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
