ISCA-5503641

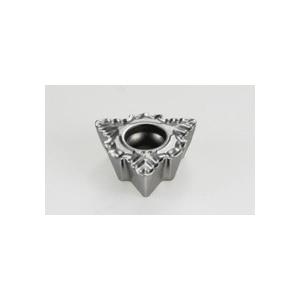

Iscar 5503641 DZDRILLS Single Sided Indexable Drill Insert Trigon Shape Material Grade: C2 C3 C5 C6 05T304 Insert WOLH Insert 3.81 mm THK 8 mm Inscribed Circle For Use On Alloy Steels and Stainless Steel Manufacturer's Grade: IC328
Product information
Description

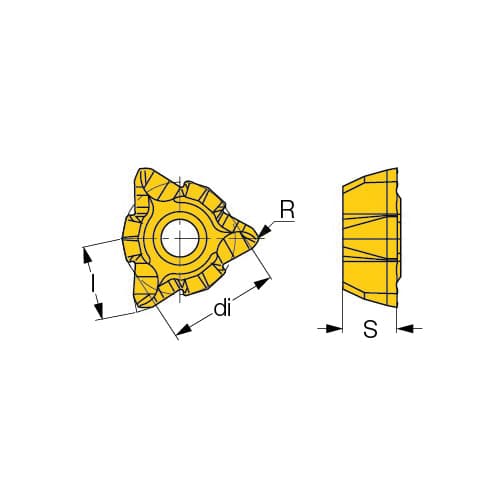

Iscar Indexable Drill Insert Single Sided Series: DZDRILLS WOLH Insert 05T304 Insert Trigon 8 mm Inscribed Circle 3.81 mm Thickness 0.1969 in Length GF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC328 80 deg Included Angle ISO Code: WOLH 05T304-GF IC328 Alloy Steels and Stainless Steel For Use On Carbide PVD-TiCN Coated Material Grade: C2 C3 C5 C6
Additional details
Product details
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate for milling parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions Inserts for DZ drills with serrated cutting edges and a wide chipformer
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN Coated
- Insert Size: 05T304
- Insert Style: WOLH
- ISO Code: WOLH 05T304-GF IC328
- Manufacturer's Grade: IC328
- Material: Carbide
- Material Grade: C2 C3 C5 C6
- Series: DZDRILLS
- Shape: Trigon
