ISCA-5503639

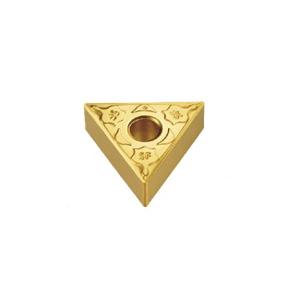

Iscar 5503639 ISOTURN 2-Sided Turning Insert ANSI Code: TNMG-331-SF IC530N TNMG Insert Material Grade: M P 331 Insert Triangular Shape 16 Seat For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC530N
Product information
Description

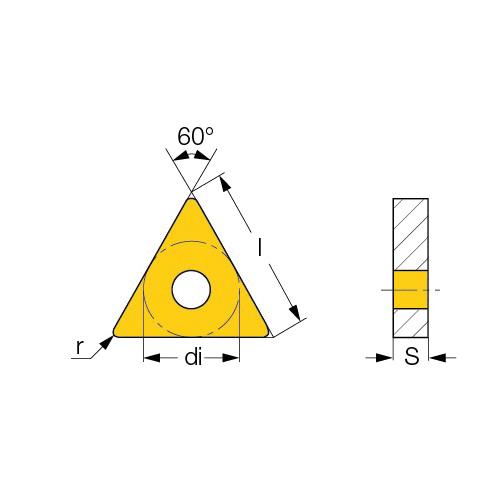

Iscar Turning Insert 2-Sided Series: ISOTURN TNMG Insert 331 Insert Triangular 2 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 4.76 mm Thickness 16 Seat SF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC530N ANSI Code: TNMG-331-SF IC530N ISO Code: TNMG 160404-SF IC530N 60 deg Included Angle 0 deg Relief Angle Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Controls chip flow at very low feed and depth of cut Excellent crater wear resistance IC530N grade a cermet grade TiCN and TiN PVD coated Used for high speed semi-finishing and finishing applications with excellent surface finish Wear resistant prevents built-up edge
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 331
- Insert Style: TNMG
- ISO Code: TNMG 160404-SF IC530N
- Manufacturer's Grade: IC530N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Triangular
