ISCA-5503638

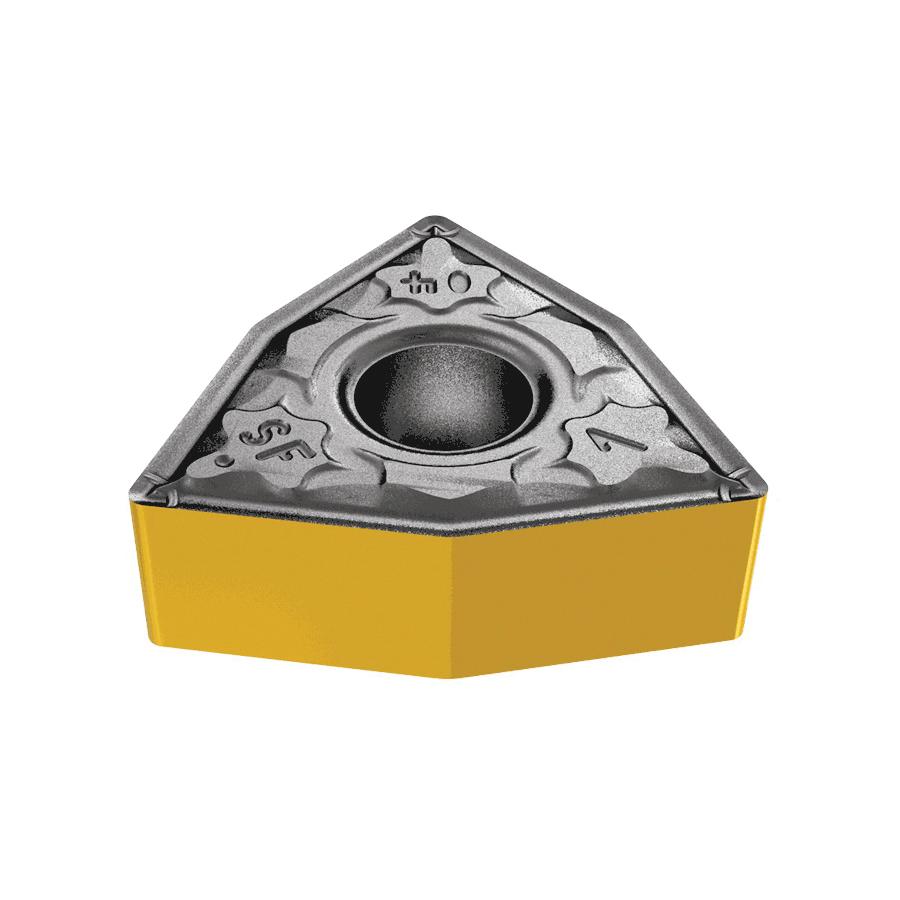

Iscar 5503638 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 3 1 SF IC570 WNMG Insert Material Grade: M P 3-1 Insert Trigon Shape 06 Seat For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC570
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 3-1 Insert Trigon 1.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 06 Seat SF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC570 ANSI Code: WNMG 3 1 SF IC570 ISO Code: WNMG 06T304-SF IC570 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Controls chip flow at very low feed and depth of cut Excellent crater wear resistance IC570 grade a PVD coated grade used for semi-finishing and finishing at medium cutting speed of alloy and stainless steel
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 3-1
- Insert Style: WNMG
- ISO Code: WNMG 06T304-SF IC570
- Manufacturer's Grade: IC570
- Material: Carbide
- Material Grade: M P
- Series: ISOTURN
- Shape: Trigon
