ISCA-5503255

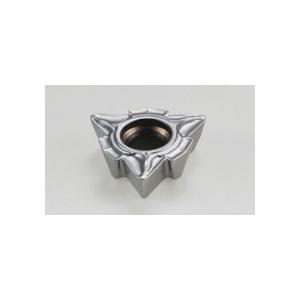

Iscar 5503255 DZDRILLS Single Sided Indexable Drill Insert ANSI Code: WOLH31 SW IC328 Trigon Shape Material Grade: C2 C3 C5 C6 31 Insert WOLH Insert 3.81 mm THK 10 mm Inscribed Circle For Use On Alloy Steels and Stainless Steel
Product information
Description
Iscar Indexable Drill Insert Single Sided Series: DZDRILLS WOLH Insert 31 Insert Trigon 10 mm Inscribed Circle 3.81 mm Thickness 0.2362 in Length SW Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC328 80 deg Included Angle ANSI Code: WOLH31 SW IC328 ISO Code: WOLH 06T304-SW IC328 For Use On: Alloy Steels and Stainless Steel Carbide PVD-TiCN Coated Material Grade: C2 C3 C5 C6
Additional details
Product details
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate for milling parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions Inserts for DZ drills with serrated cutting edges and a wide chipformer
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN Coated
- Insert Size: 31
- Insert Style: WOLH
- ISO Code: WOLH 06T304-SW IC328
- Manufacturer's Grade: IC328
- Material: Carbide
- Material Grade: C2 C3 C5 C6
- Series: DZDRILLS
- Shape: Trigon
