ISCA-5503223

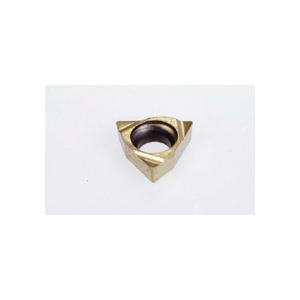

Iscar 5503223 ISOTURN 1-Sided Turning Insert ANSI Code: WBMT 520L IC530N WBMT Insert Material Grade: M P 520 Insert Trigon Shape 06 Seat Positive Rake Left Hand Cutting For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC530N
Product information
Description

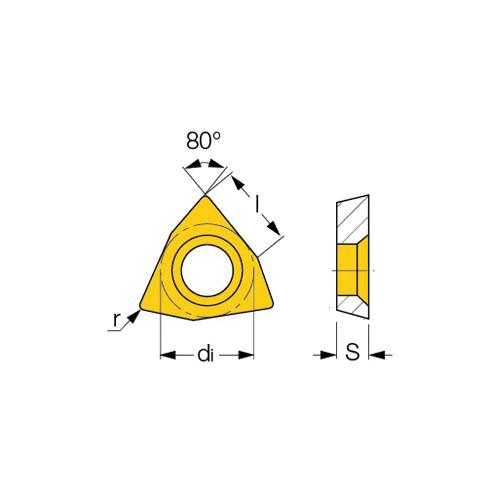

Iscar Turning Insert 1-Sided Series: ISOTURN WBMT Insert 520 Insert Trigon 2 mm Maximum Depth of Cut 3.97 mm Inscribed Circle 1.59 mm Thickness 06 Seat Positive Rake L Chipbreaker 0.2 mm Corner Radius Manufacturer's Grade: IC530N ANSI Code: WBMT 520L IC530N ISO Code: WBMT 060102L IC530N 80 deg Included Angle 5 deg Relief Angle Left Hand Cutting Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Positive flank ground chipformer Provides excellent surface finish IC530N grade a cermet grade TiCN and TiN PVD coated Used for high speed semi-finishing and finishing applications with excellent surface finish Wear resistant prevents built-up edge
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 520
- Insert Style: WBMT
- ISO Code: WBMT 060102L IC530N
- Manufacturer's Grade: IC530N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Trigon
