ISCA-5503038

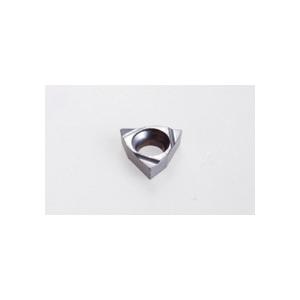

Iscar 5503038 ISOTURN Turning Insert ANSI Code: WBMT 520-L IC354 WBMT Insert Material Grade: M P 520 Insert Trigon Shape 06 Seat Positive Rake Left Hand Cutting For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC354
Product information
Description
Iscar Turning Insert Series: ISOTURN WBMT Insert 520 Insert Trigon 2 mm Maximum Depth of Cut 3.97 mm Inscribed Circle 1.59 mm Thickness 06 Seat Positive Rake 0.2 mm Corner Radius 2.26 mm Hole Dia Manufacturer's Grade: IC354 ANSI Code: WBMT 520-L IC354 ISO Code: WBMT 060102L IC354 80 deg Included Angle 5 deg Relief Angle Left Hand Cutting Carbide PVD-TiCN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Positive flank inserts with a ground chipformer Used for finishing on miniature boring bars provide excellent surface finish Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiCN Coated
- Insert Size: 520
- Insert Style: WBMT
- ISO Code: WBMT 060102L IC354
- Manufacturer's Grade: IC354
- Material: Carbide
- Material Grade: M P
- Series: ISOTURN
- Shape: Trigon
