ISCA-5502940
Iscar 5502940 DRDRILLS Single Sided Indexable Drill Insert Special Parallelogram Shape Material Grade: C2 C3 C5 C6 60204 Insert XOMT Insert 2.56 mm THK 6.16 mm Inscribed Circle For Use On Alloy Steels and Stainless Steel
Product information
Description

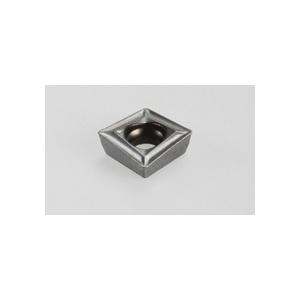

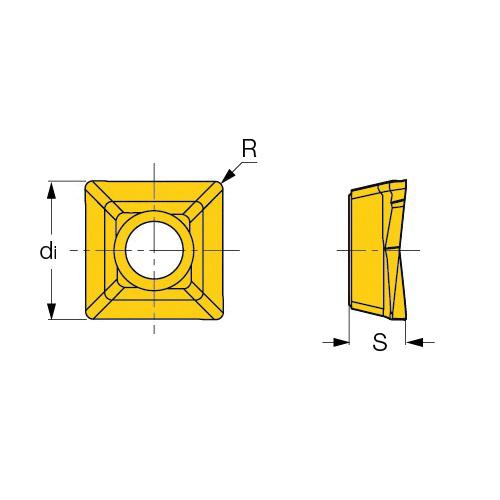

Iscar Indexable Drill Insert Single Sided Series: DRDRILLS XOMT Insert 60204 Insert Special Parallelogram 6.16 mm Inscribed Circle 2.56 mm Thickness DT Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC328 85 deg Included Angle ISO Code: XOMT 60204-DT IC328 Alloy Steels and Stainless Steel For Use On Carbide PVD-TiCN Coated Material Grade: C2 C3 C5 C6
Additional details
Product details
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate for milling parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN Coated
- Insert Size: 60204
- Insert Style: XOMT
- ISO Code: XOMT 60204-DT IC328
- Manufacturer's Grade: IC328
- Material: Carbide
- Material Grade: C2 C3 C5 C6
- Series: DRDRILLS
- Shape: Special Parallelogram
