ISCA-3308113

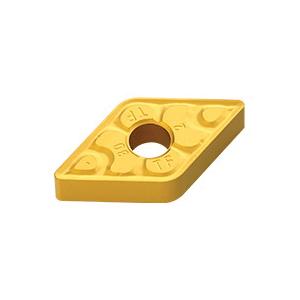

Iscar 3308113 ISOTURN 2-Sided Turning Insert ANSI Code: DNMG 432-TF IC830 DNMG Insert Material Grade: M P S 432 Insert Rhombic Shape 15 Seat Positive Rake For Use On Stainless Steel Steel and High Temperature Alloys Carbide
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN DNMG Insert 432 Insert Rhombic 3.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 15 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 5.1562 mm Hole Dia Manufacturer's Grade: IC830 ANSI Code: DNMG 432-TF IC830 ISO Code: DNMG 150408-TF IC830 55 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN/AlTiN+TiN Coated Material Grade: M P S For Use On: Stainless Steel Steel and High Temperature Alloys
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN/AlTiN+TiN Coated
- Insert Size: 432
- Insert Style: DNMG
- ISO Code: DNMG 150408-TF IC830
- Manufacturer's Grade: IC830
- Material: Carbide
- Material Grade: M P S
- Series: ISOTURN
- Shape: Rhombic
