CLEC-24285

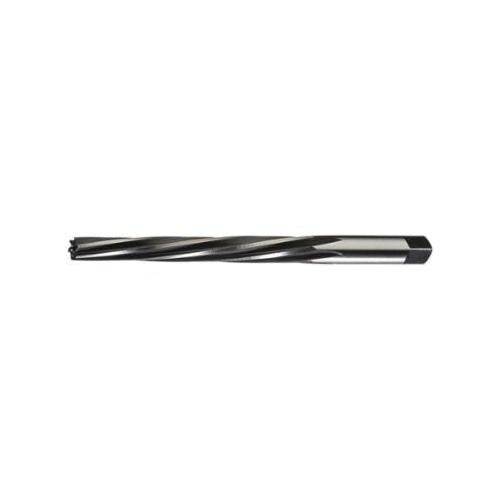

Cleveland® C24285 659 Taper Pin Reamer #9 Taper Pin 0.6066 in Dia Reamer 0.4805 in Dia Small End Left Spiral/Helical Flute Straight Shank
Product information
Description

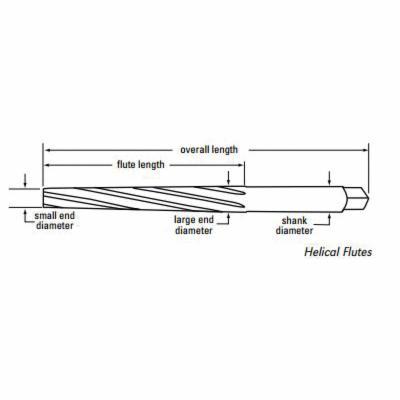

Cleveland® Taper Pin Reamer Series: 659 Taper Pin Size/Number: #9 0.6066 in Dia Reamer 0.4805 in Small End Diameter 8.313 in Overall Length Straight Shank 9/16 in Shank Diameter 8 Flutes Left Spiral/Helical Flute 6.063 in Flute Length HSS Bright Right Hand Cutting Direction Applicable Materials: Alloy Steel/Aluminum/Carbon Steel/Tool Steel
Additional details
Product details
- Designed to turn a straight hole into a tapered hole for standard taper pins Straight flute design is recommended for most materials and applications Left hand spiral right hand cut helical flute design is recommended for applications where the reamer tends to wedge itself Square on shank for use with tap wrench in hand reaming applications
Attributes
- Applicable Materials: Alloy Steel/Aluminum/Carbon Steel/Tool Steel
- Cutting Direction: Right Hand
- Finish: Bright
- Flute Length: 6.063 in
- Flute Type: Left Spiral/Helical
- Material: HSS
- Number of Flutes: 8
- Overall Length: 8.313 in
- Series: 659
- Shank Type: Straight
