ISCA-5140360

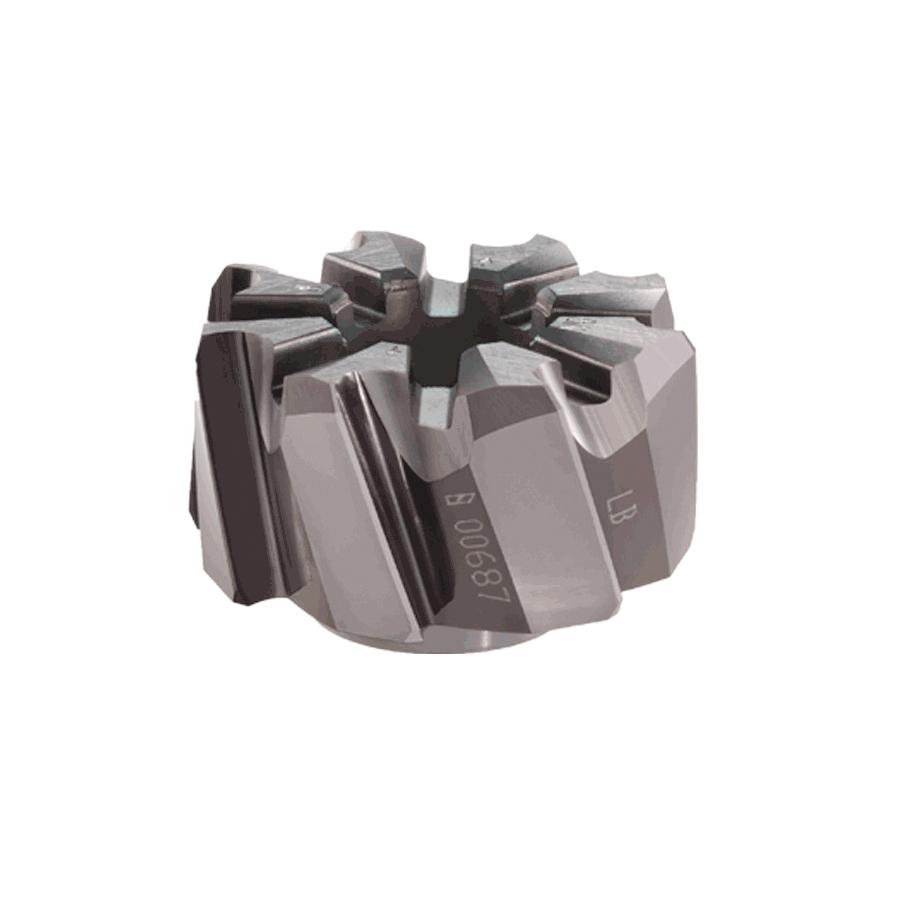

Iscar 5140360 Modular Reamer Head 31 mm Dia Solid Carbide Left Hand Cutting
Product information
Description
Iscar Modular Reamer Head 31 mm Diameter Head Left Hand Cutting Direction Solid Carbide PVD Coated
Additional details
Product details

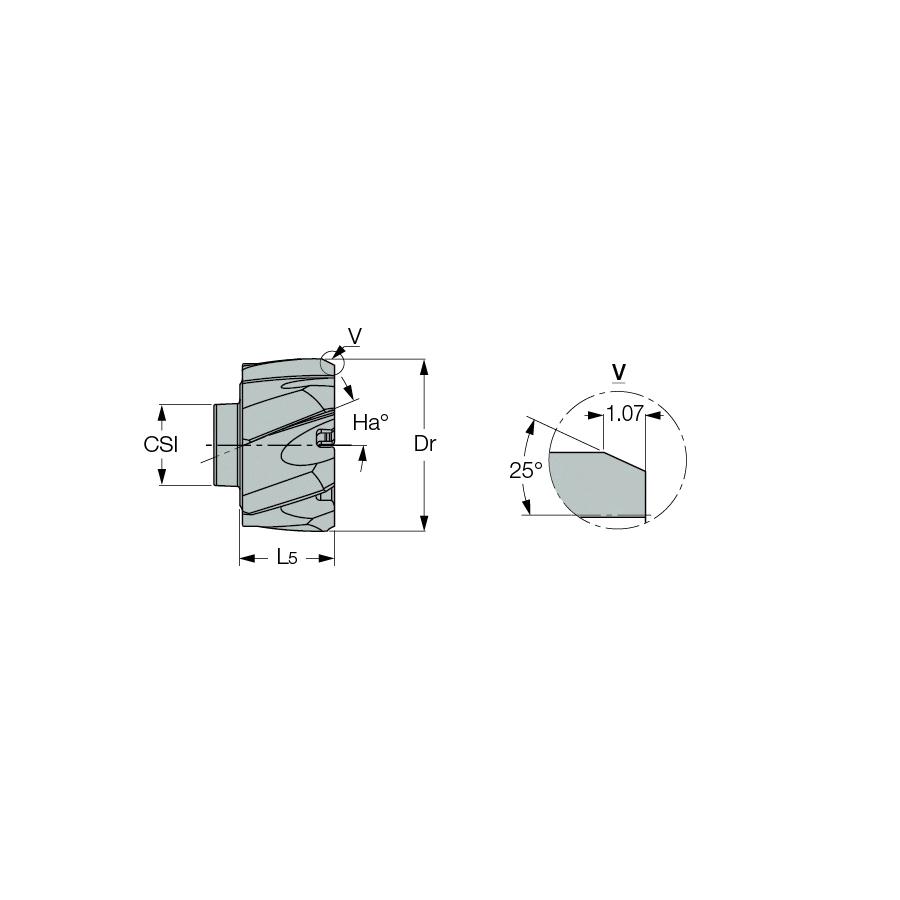

- IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions Reaming heads with a quick change bayonet mechanism for H7 hole tolerance high speed reaming of through holes 8 flutes 25 deg chamfer 1.07 mm chamfer width BN9 connection size 12.9 mm flute length 20 deg helix angle ISO Code: RM-BN9-31.000-H7LB
Attributes
- Cutting Direction: Left Hand
- Finish: PVD Coated
- Material: Solid Carbide
